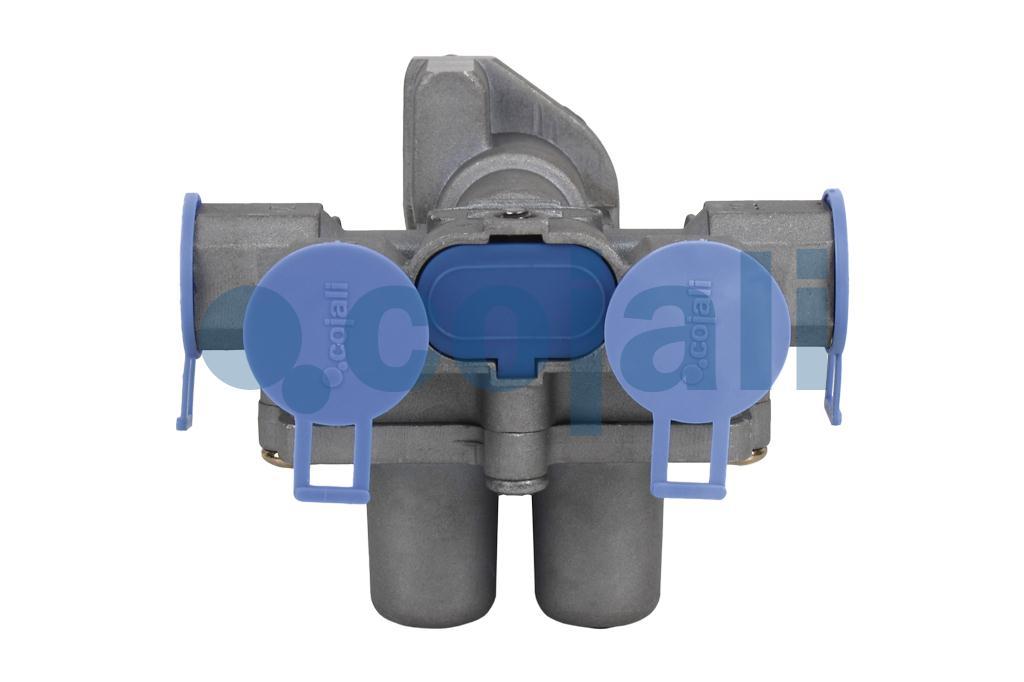

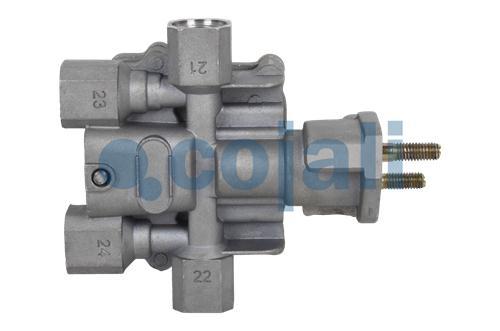

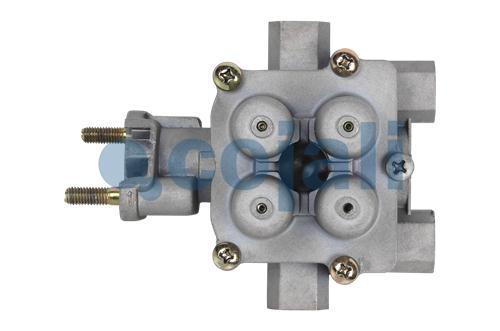

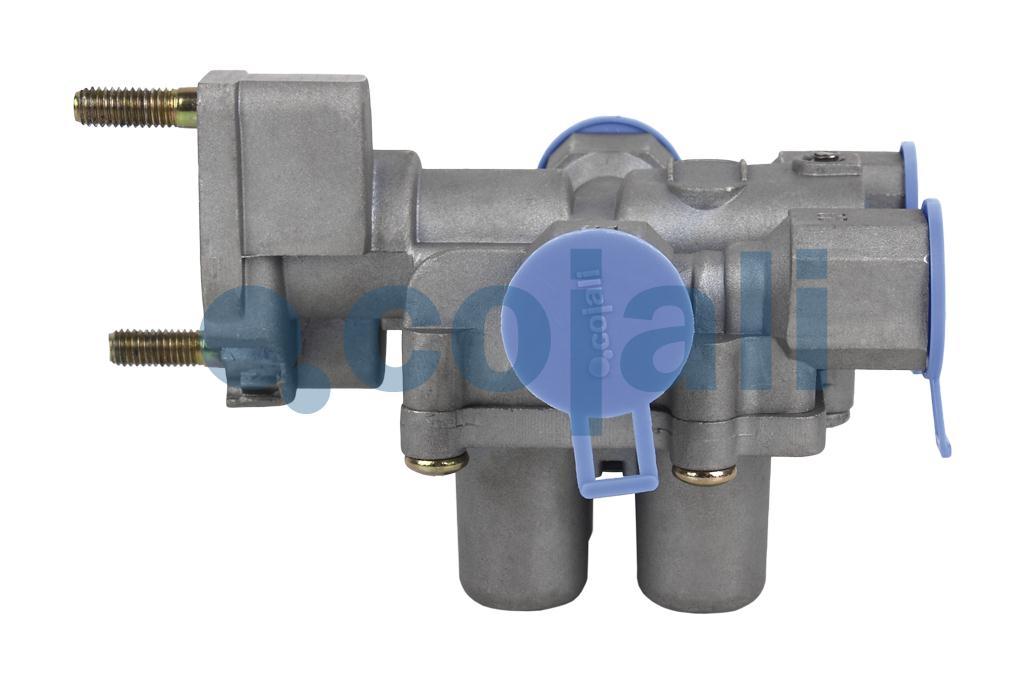

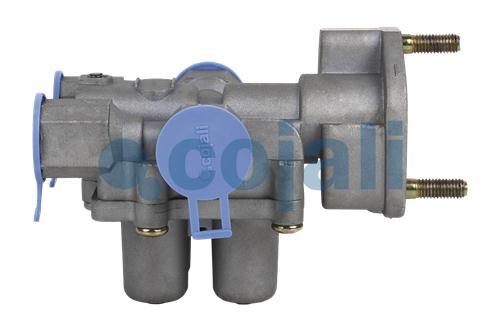

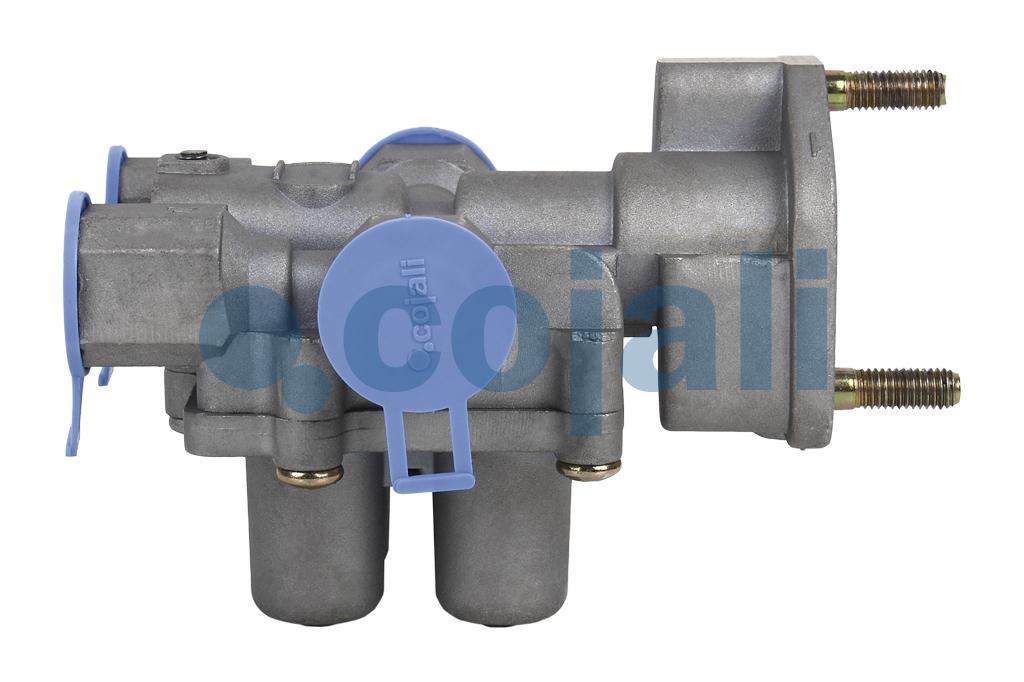

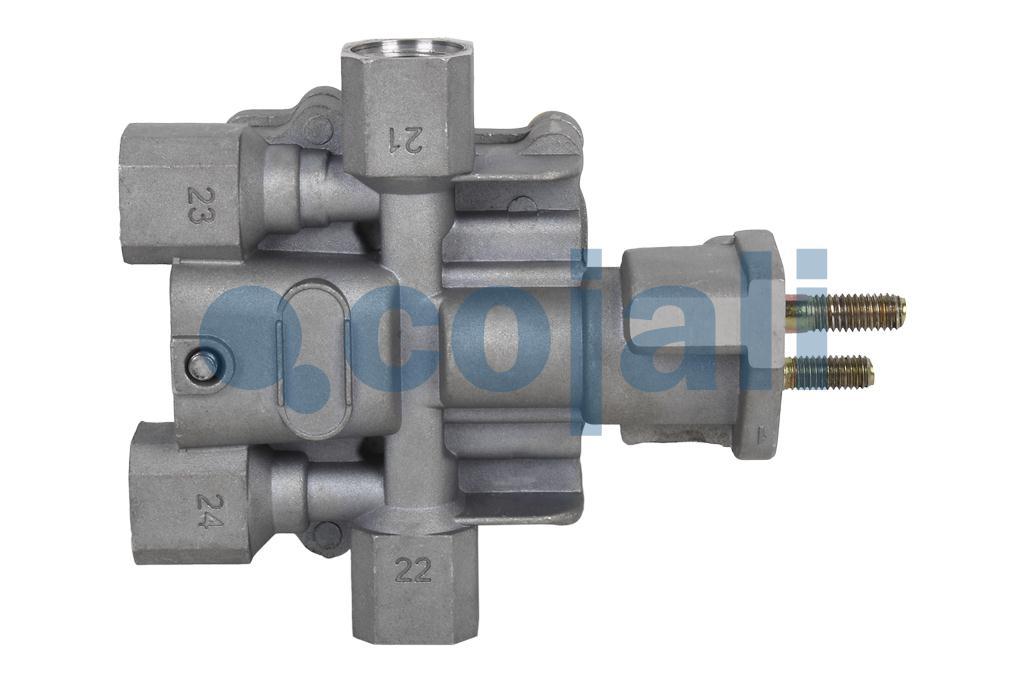

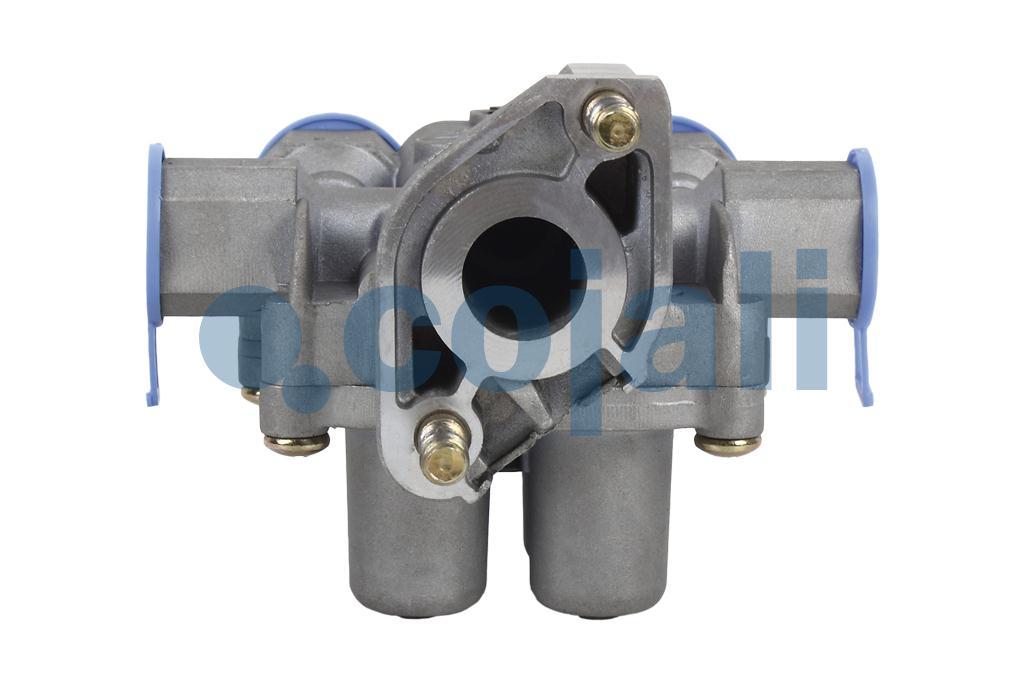

4-WAY PROTECTION VALVE

Name: 4-WAY PROTECTION VALVE
Brand: Cojali
SKU: 9347141610
Rating: 4.22 (18 reviews)

4-WAY PROTECTION VALVE, 2222442, 9347141610

4-WAY PROTECTION VALVE

OEM:

9347141610 WABCO

Cojali reference:

2222442 QUANTITY

Repair kits

TECHNICAL DATA

Circuit opening pressure 1	6,5 bar
Circuit opening pressure 2	6,5 bar
Circuit opening pressure 3	7,5 bar
Circuit opening pressure 4	6,5 bar
Connection 1	Sin rosca
Connection 21	M22x1,5 VOSS
Connection 22	M22x1,5 VOSS
Connection 23	M22x1,5 VOSS
Connection 24	M22x1,5 VOSS
Safety device	No
Weight	972.00 g

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
WABCO	9347141610

RELATED PRODUCTS

	Cojali Reference	Name	OEM

REPAIR KITS

	Cojali Reference	Name	Obtained by	OEM
