4-WAY PROTECTION VALVE

Name: 4-WAY PROTECTION VALVE
Brand: Cojali
SKU: AE4451
Rating: 4.24 (19 reviews)

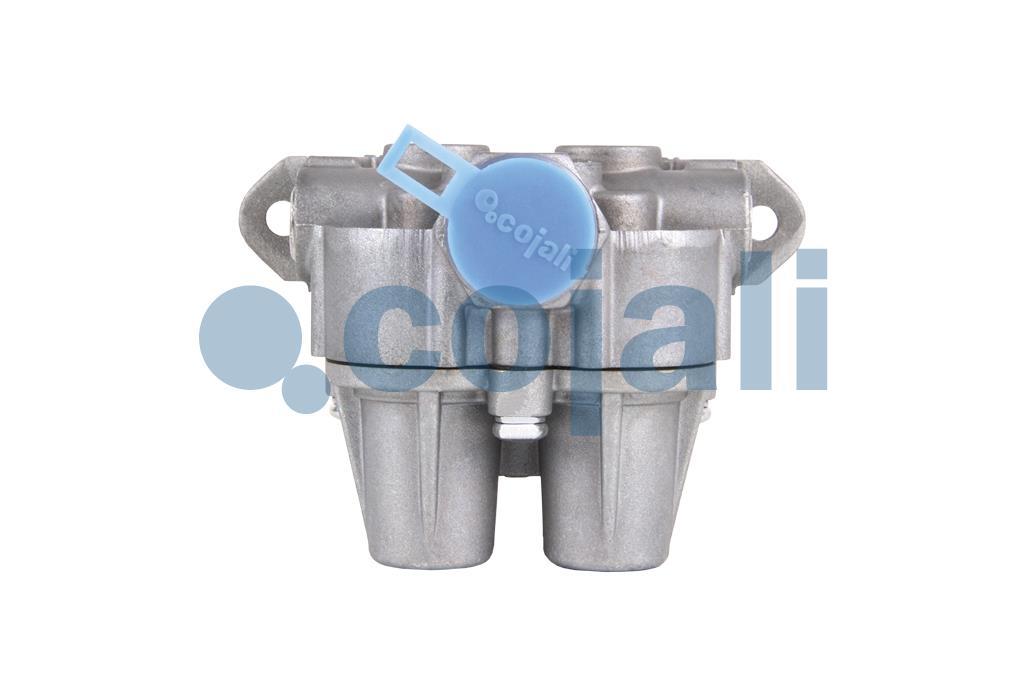

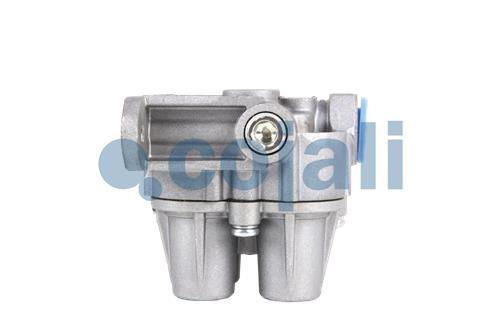

4-WAY PROTECTION VALVE

OEM:

AE4451 KNORR BREMSE

Cojali reference:

2322424 QUANTITY

Technical sheet

Repair kits

Add to the basket

TECHNICAL DATA

Technical sheet

Circuit opening pressure 1	7,0 bar (by-pass)
Circuit opening pressure 2	7,0 bar (by-pass)
Circuit opening pressure 3	7,3 bar
Circuit opening pressure 4	7,3 bar
Connection 1	M22x1,5
Connection 21	Ø9 mm
Connection 22	Ø9 mm
Connection 23	Ø9 mm
Connection 24	Ø9 mm
Safety device	No
Weight	1030.00 g

APPLICATIONS

Vehicle type	Brand	Series	Type	Model	Engine type
BUS	IRISBUS	---------	---------	---------	---------

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
IVECO	5010197249	-
KNORR BREMSE	AE4451
KNORR BREMSE	SEB01274	-

REPAIR KITS

	Cojali Reference	Name	Obtained by	OEM
