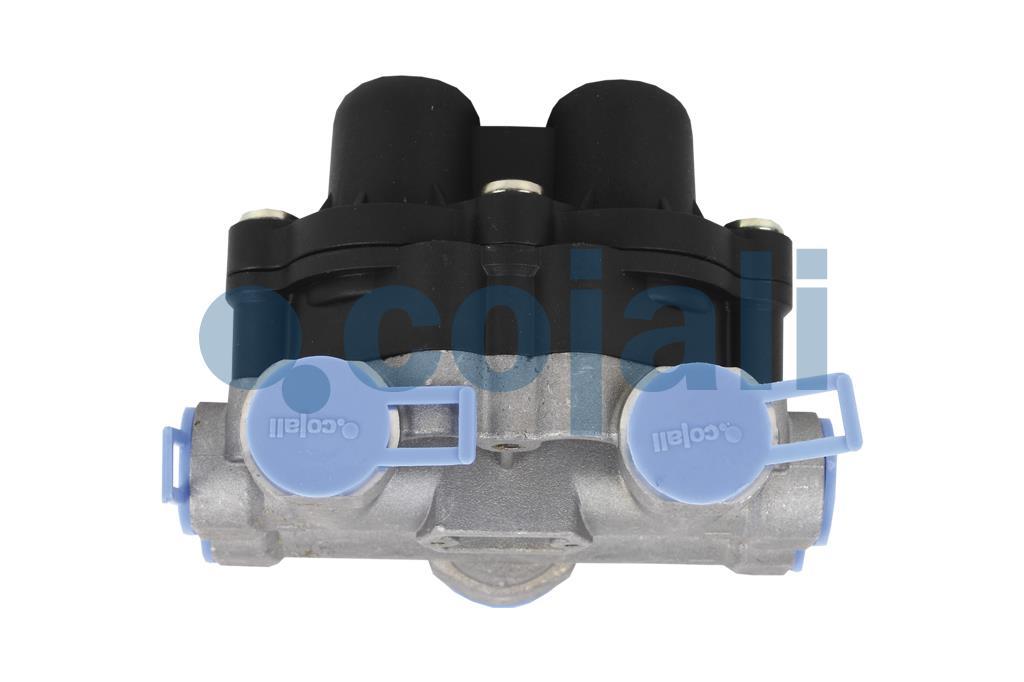

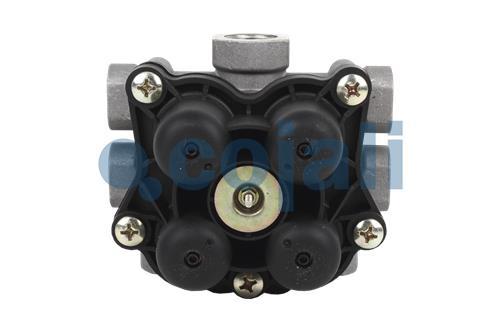

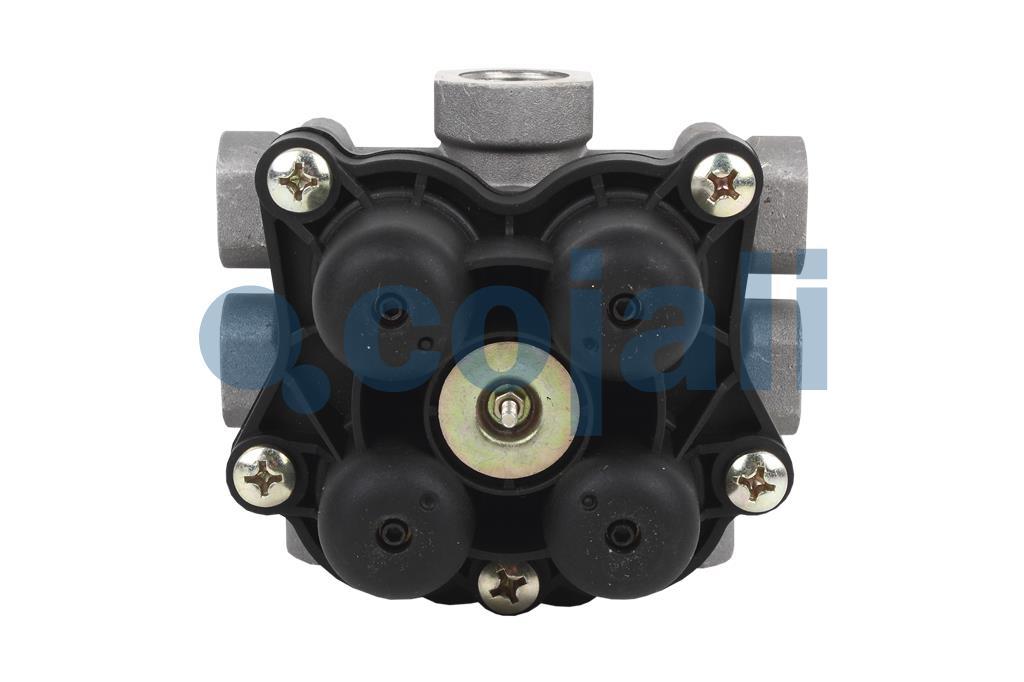

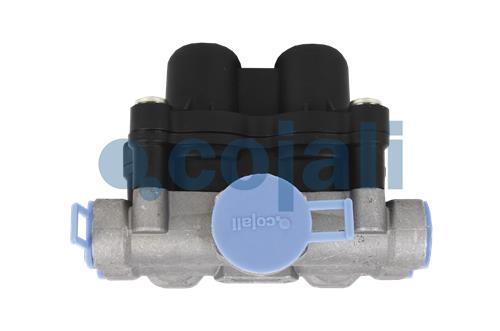

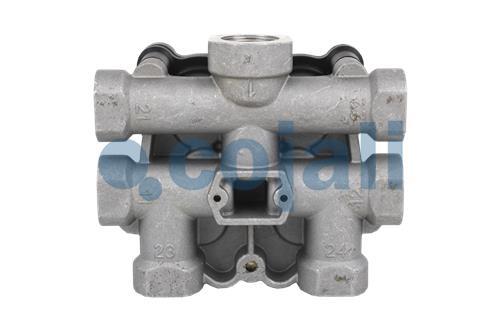

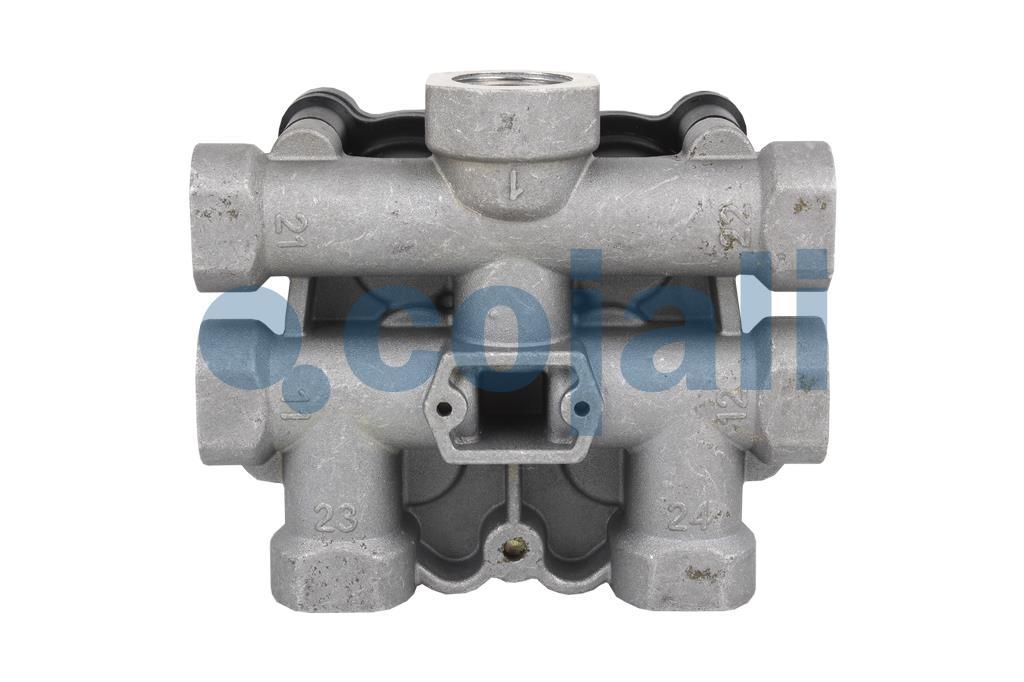

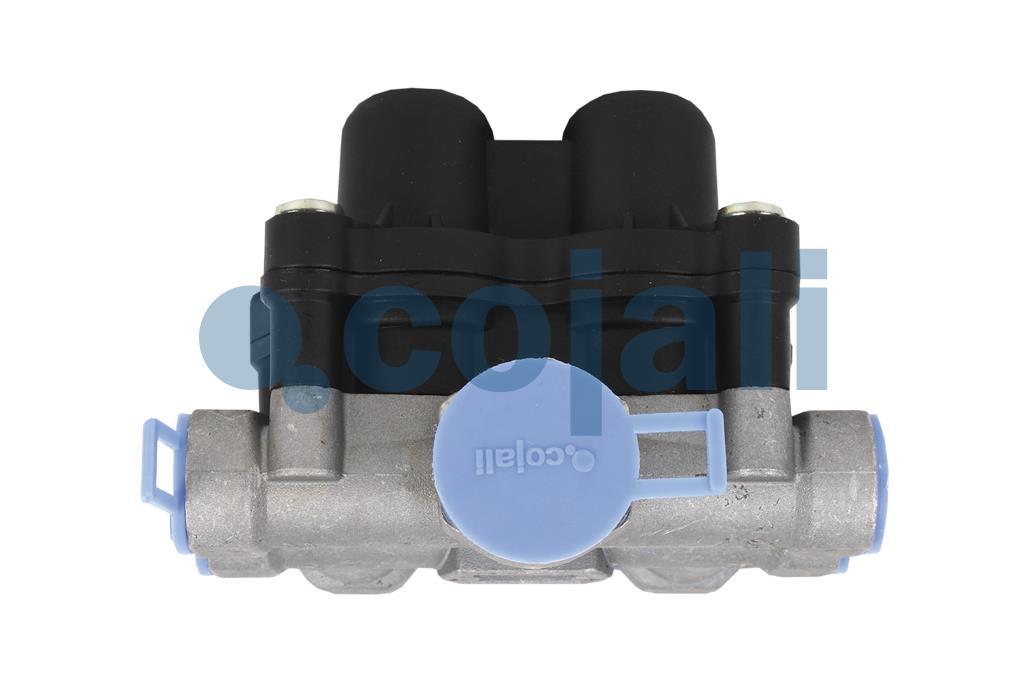

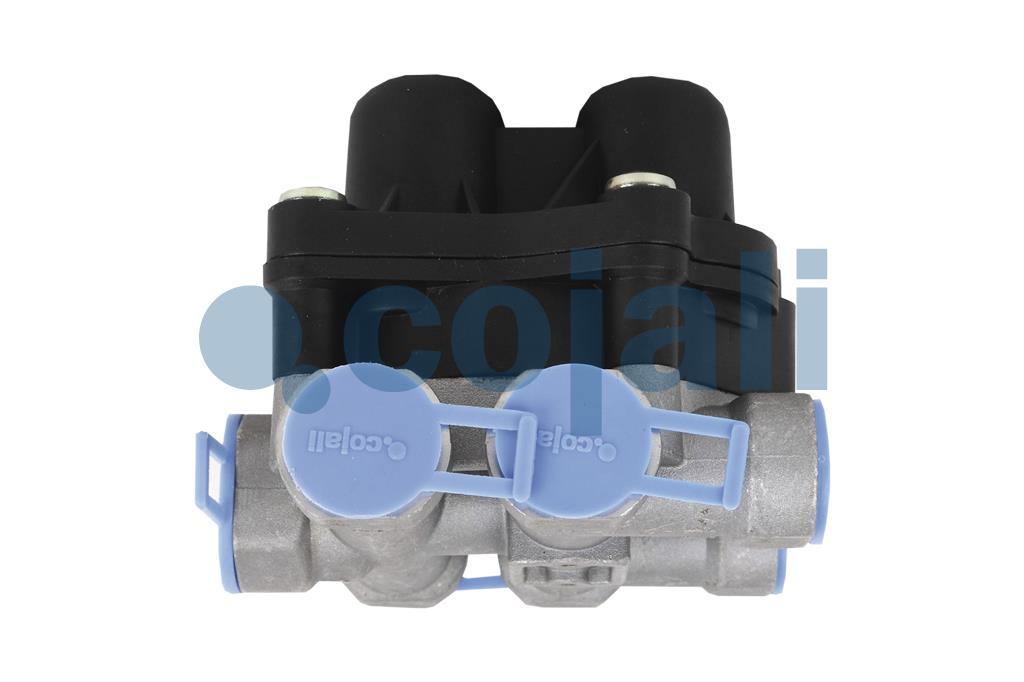

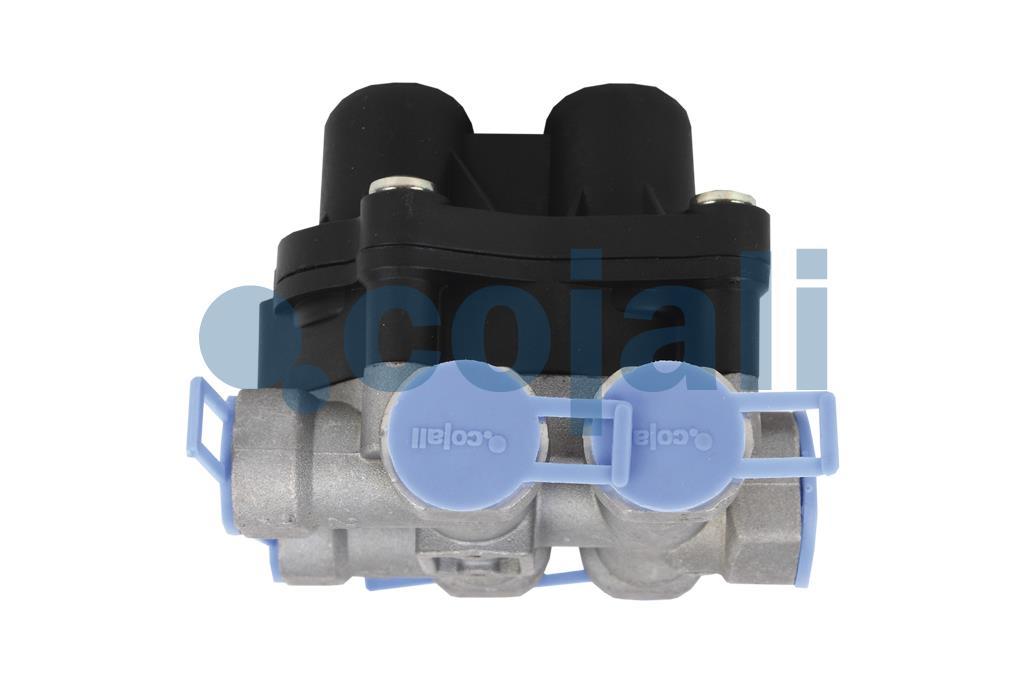

4-WAY PROTECTION VALVE

Name: 4-WAY PROTECTION VALVE
Brand: Cojali
SKU: AE4604
Rating: 4.22 (17 reviews)

4-WAY PROTECTION VALVE

OEM:

AE4604 KNORR BREMSE

Cojali reference:

2322602 QUANTITY

Technical sheet

Repair kits

Add to the basket

TECHNICAL DATA

Technical sheet

Circuit opening pressure 1	6,3 bar (by-pass)
Circuit opening pressure 2	6,3 bar (by-pass)
Circuit opening pressure 3	5,8 bar
Circuit opening pressure 4	5,8 bar
Connection 1	M22x1,5
Connection 11	M16x1,5
Connection 12	M16x1,5
Connection 21	M16x1,5
Connection 22	M16x1,5
Connection 23	M16x1,5
Connection 24	M16x1,5
Safety device	Si
Weight	900.00 g

APPLICATIONS

Vehicle type	Brand	Series	Type	Model	Engine type
TRUCK	VOLVO	---------	---------	---------	---------

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
KNORR BREMSE	AE4604
KNORR BREMSE	II36012000	-
SAMPA	094.076	-
VOLVO	3197588	-

REPAIR KITS

	Cojali Reference	Name	Obtained by	OEM
