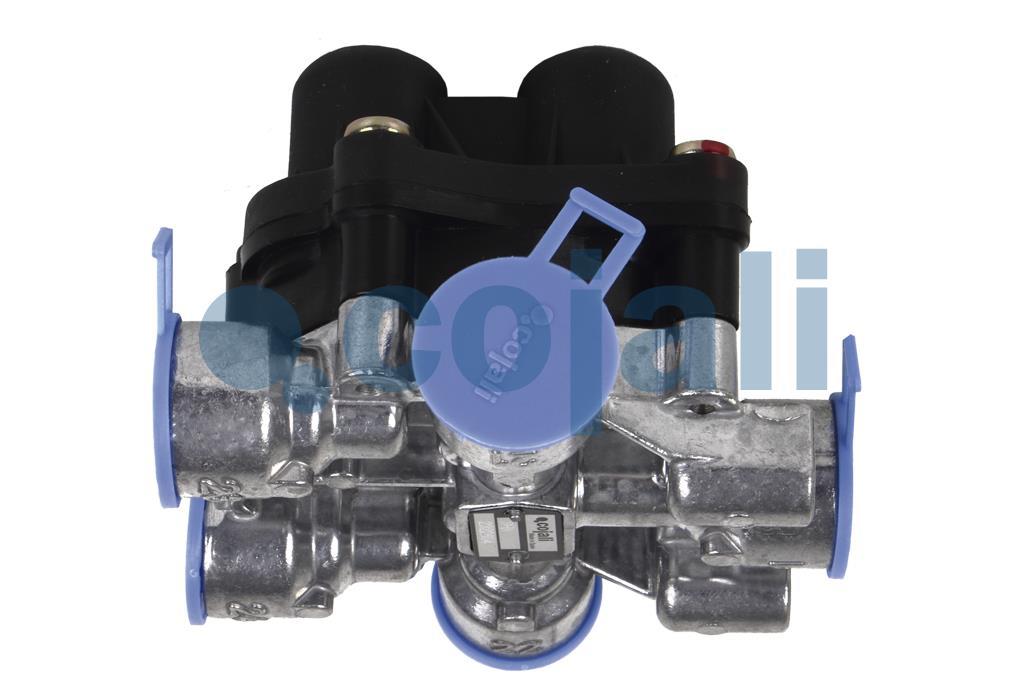

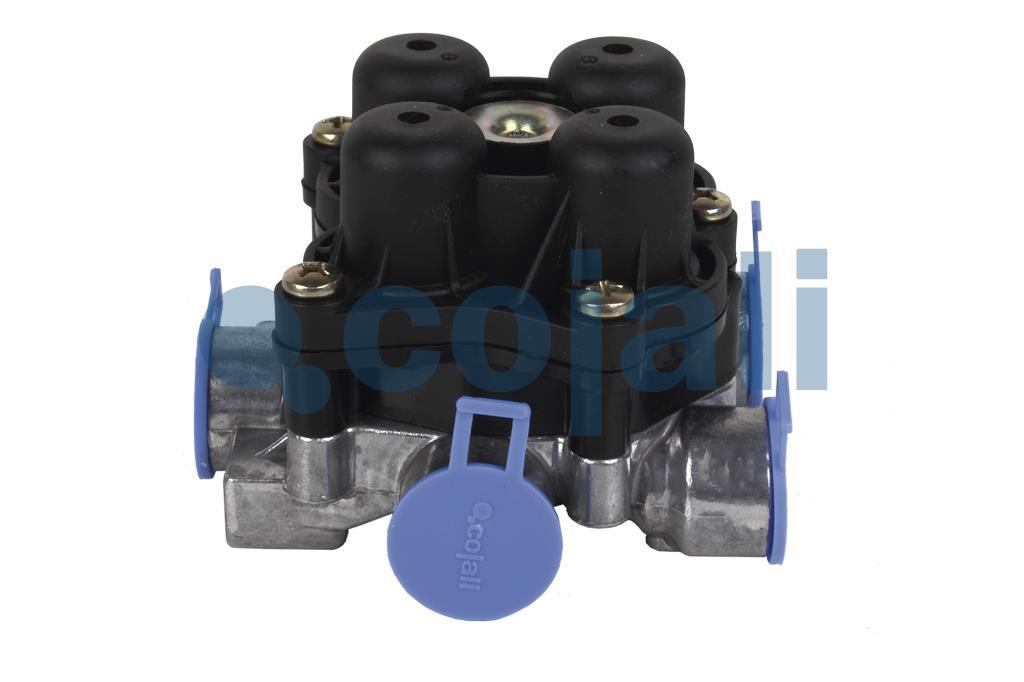

4-WAY PROTECTION VALVE

Name: 4-WAY PROTECTION VALVE
Brand: Cojali
SKU: AE4609
Rating: 4.24 (19 reviews)

4-WAY PROTECTION VALVE

OEM:

AE4609 KNORR BREMSE

Cojali reference:

2322604 QUANTITY

Technical sheet

Add to the basket

TECHNICAL DATA

Technical sheet

Circuit opening pressure 1	6,9 bar (by-pass)
Circuit opening pressure 2	6,9 bar (by-pass)
Circuit opening pressure 3	7,0 bar
Circuit opening pressure 4	6,9 bar
Connection 1	M22x1,5 VOSS
Connection 21	M22x1,5 VOSS
Connection 22	M22x1,5 VOSS
Connection 23	M22x1,5 VOSS
Connection 24	M22x1,5 VOSS
Safety device	Si
Weight	767.00 g

APPLICATIONS

Vehicle type	Brand	Series	Type	Model	Engine type
TRUCK	MAN	---------	---------	---------	---------

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
KNORR BREMSE	AE4609
KNORR BREMSE	II37460	-
KNORR BREMSE	II37460N00	-
MAN	81521516095	-
MAN	81521516105	-
